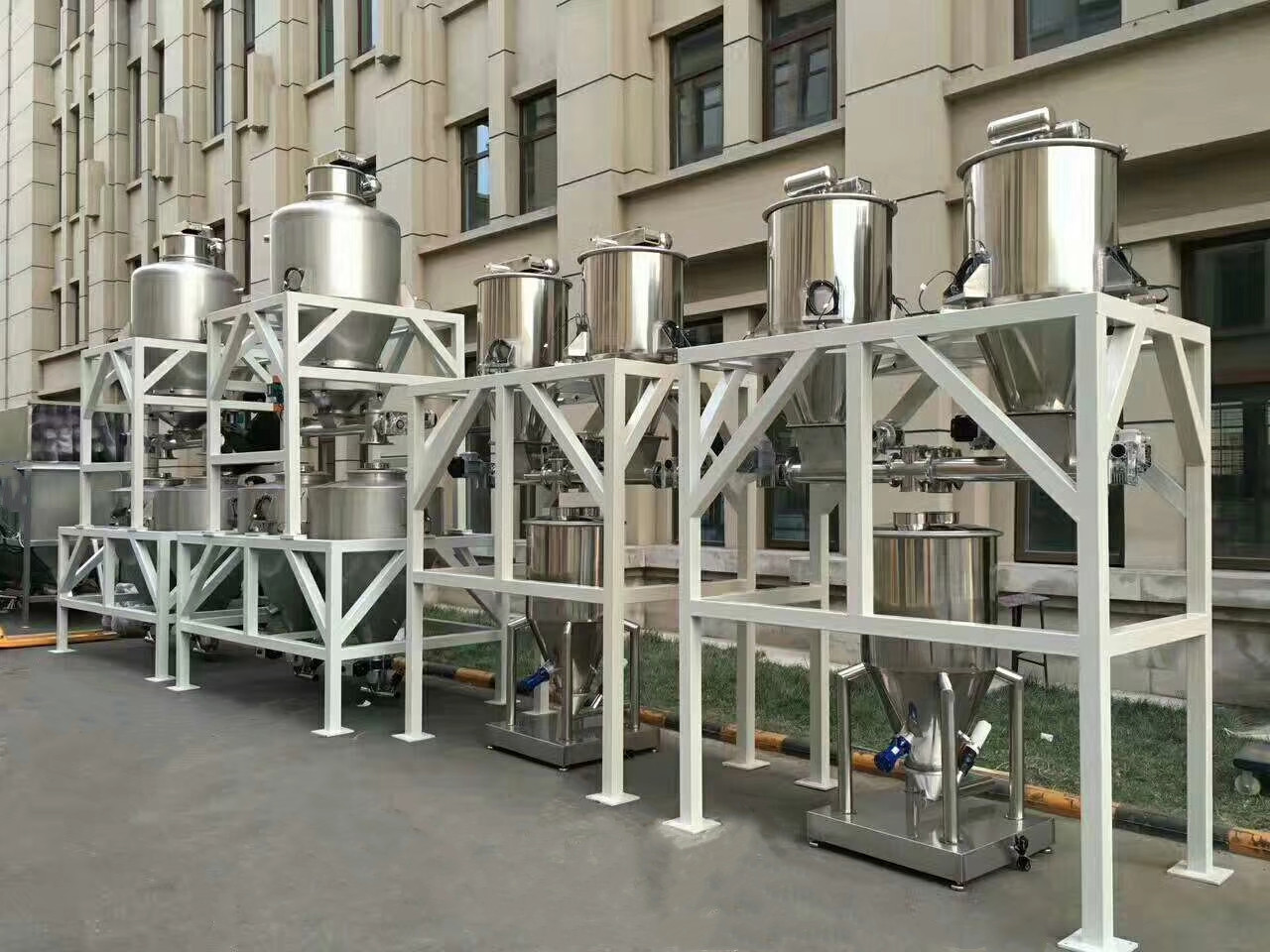

供料输送系列——气动式真空上料机
Feeding and conveying series, Pneumatic vacuum feeder
气动式真空吸料机是通过真空发生器消耗压缩空气产生负压，从而将物料从一个位置输送到另外一个位置的设备。
Pneumatic vacuum suction machine is a device that consumes compressed air through a vacuum generator to generate negative pressure,
thereby transporting materials from one location to another.
他是采用压缩空气座位动力，特点是：体积小、灵活性高、安装方便、操作简单等特点。
It adopts compressed air seat power, which is characterized by small size, high flexibility, convenient installation and simple operation.
技术参数 Technical parameter
名称 Name | 型号 Model | 耗气量 Air consumption (L/min) | 输送能力Transport capacity（kg/h) | 下料口规格 Blanking caliber(mm) | 筒体尺寸 Cylinder size(mm) | 吸料管规格 Suction pipe diameter(mm) |
真空上料机 Pneumatic vacuum feeder | PVF-01 | 180 | 80~150 | DN100 | Ф210x660 | 25 |
PVF-02 | 350 | 200~300 | DN125 | Ф250x720 | 38 | |
PVF-03 | 710 | 400~600 | DN150 | Ф280x1000 | 51 | |
PVF-04 | 1440 | 800~1250 | DN200 | Ф420X1450 | 51 | |
PVF-05 | 2880 | 1500~2200 | DN250 | Ф420x1500 | 63 | |
PVF-06 | 4300 | 2300~2850 | DN300 | Ф600x1860 | 76 | |
说明 Note: 1.以上参数以PP聚丙烯物料，水平10米+垂直5米输送工况测试所得，但不同工况、能力、输送距离等因素都会 影响设备参数的变化。 The above parameters are obtained by testing PP polypropylene material, horizontal 10meters, vertical 5 meters conveying conditions, but different conditions, capacity, conveying distance and other factors will affect the change of equipment parameters. 2.以上参数仅供参考，具体数值根据实际现场工况及物料特性等来确定，请与我们联系，我们会提供最佳的使用 方案及最准确数据。 The above parameters are for reference only. The specific values are determined according to the actual field conditions and material characteristics. Please contact us, and we will provide the best use plan and the most accurate data. 3.所有的机型随着产品升级参数和尺寸可能会发生变更，恕不另行通知。
The parameters of all models may be changed with the product upgrade without prior notice. | ||||||
